DeepMorphology for PixInsight
Welcome to DeepMorphology!
DeepMorphology is part of the Better PI Suite bundle
DeepMorphology is a sophisticated and versatile morphological transformation process. Its main function is to reshape the structures in an image by comparing each pixel against a small neighborhood defined by a structuring element. It is a modern successor to classic morphology tools like PixInsight’s own MorphologicalTransformation, keeping everything they did well and adding the parts that were missing, and then some more.In addition to offering new operators and adjustments, and a easy to use built-in structuring element editor, in DeepMorphology everything is tuned in real-time through our own Dynamic Live Preview: a dedicated window that shows the transformed image and refreshes live as we move the controls, where we can zoom in/out, pan, and other features that simply do not exist in PixInsight’s old RT-Preview window. Morphological transformations can now be examined really up close, in real time. No more guessing. We can even edit the structuring element and see how that affects our image in real time, at up to x32 zoom! This is one of the several features that are currently impossible to achieve with PixInsight’s own MT process.

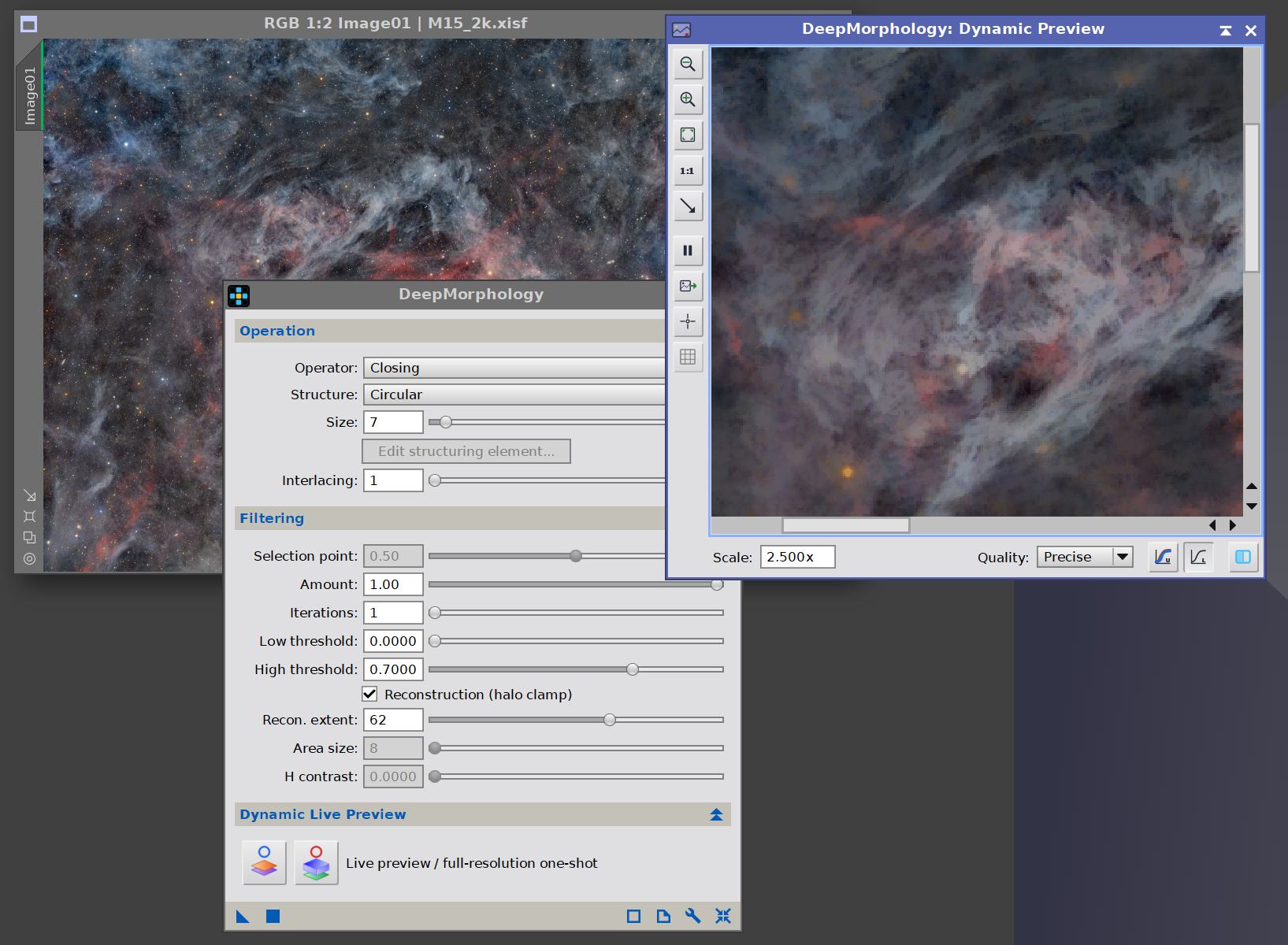

DeepMorphology’s Dynamic Live Preview
We can examine the transformation in real time, as we fine-tune it, pan, zoom in and out of the preview, etc.
Try it for free
DeepMorphology is not free, but you can try it for 30 days, fully functional. Every feature is available to everyone.
To use DeepMorphology after the trial period, you need to get your forever license below. No subscription fees! Your copy is yours to keep and use forever. You would also receive free upgrades within the major version you purchased.
Installing it, in three steps
Every PixInsight process made by Deep Sky Colors is installed through DSC Hub (DSC = Deep Sky Colors), our free PixInsight process. One address gets you the hub, and the hub gets you the rest.
1. Add this repository to PixInsight:
Where do I add it?
- Open PixInsight and go to RESOURCES > Updates > Manage Update Repositories.
- Click Add, and enter the address above exactly.
- Click OK to save it, then OK again to close the window.
2. Go to RESOURCES > Updates > Check for Updates. DSC Hub appears already selected, so click Apply and restart when PixInsight asks.
3. Open PROCESS > DeepSkyColors > DSCHub. You are now looking at every process we make, with its version, what it does and what changed in its latest release. Select DeepMorphology, click Download and install, and restart. It appears under PROCESS > DeepSkyColors.
DSC Hub is free, it installs only what you select, and it leaves the rest of your PixInsight setup alone.
Prefer to add one repository per process? DeepMorphology still has its own: https://repo.deepskycolors.com/DeepMorphology/
Note that individual repositories such as this could be discontinued.

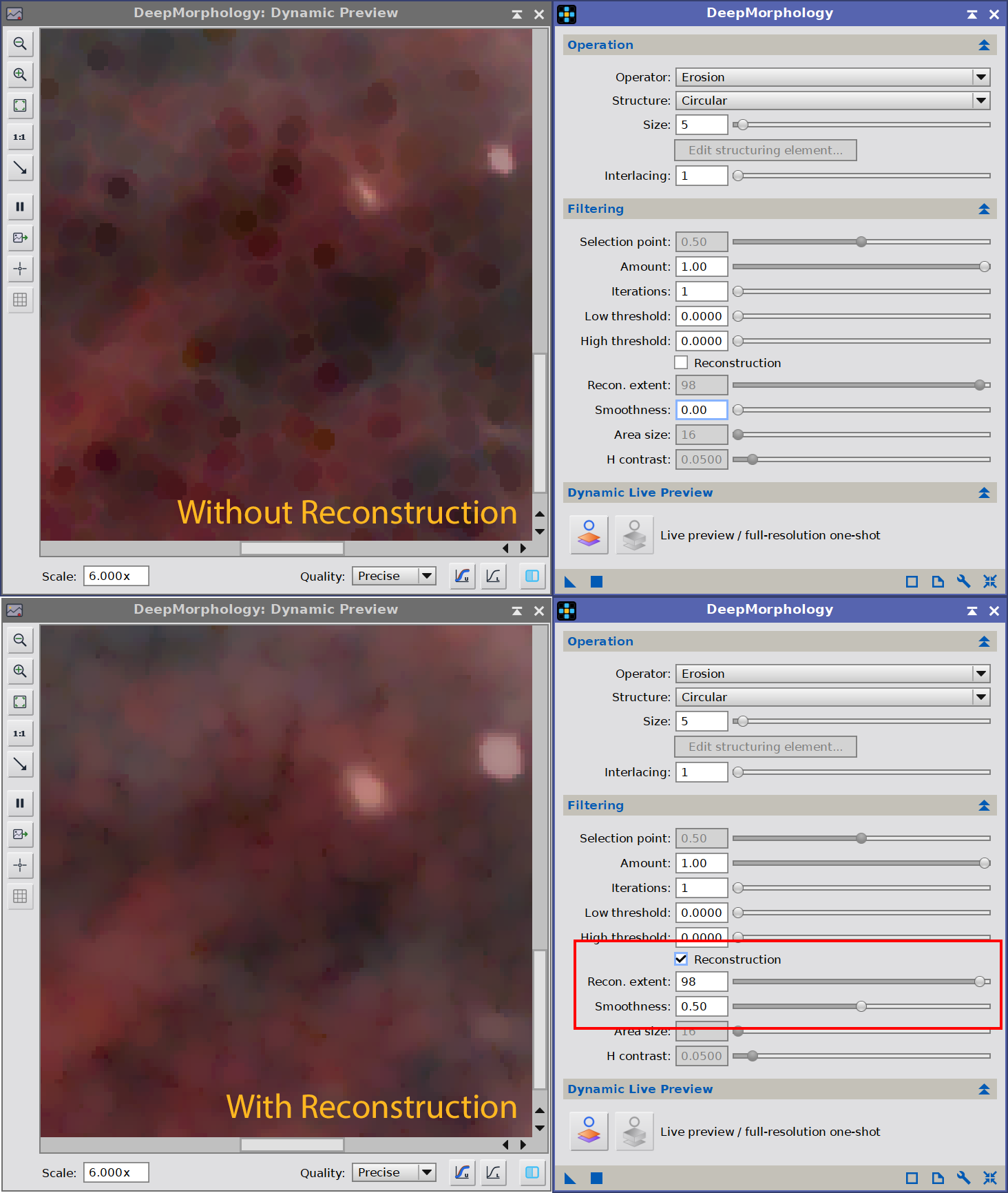

Geodesic Reconstruction: One of several DeepMorphology’s features
not available in PixInsight’s MorphologicalTransformation
Top: a plain erosion pulls the glow down but leaves a dark patch around the star’s location.
Bottom: with Reconstruction on, the result is clamped to the original and the patch is gone.
Register your copy, use it forever
DeepMorphology can be registered for personal use under a paid license. If you wish to use DeepMorphology for commercial, business, or organizational purposes, please contact us to discuss appropriate licensing options.
No subscriptions, all free v1.xx updates. Your copy is yours and once registered, it will never be deactivated. You can install and use it on any machine you have also installed PixInsight, for any of the available operating systems (your registration is valid for all offered platforms) or number of installations, as long as they are for you to use.
NOTE: After you make your purchase, you should receive an email from us, usually within 15 minutes. If, after 30 minutes you still haven’t received our message, please check your spam folder. If still nothing, contact us.
DeepMorphology Documentation
DeepMorphology’s full documentation is accessible from within DeepMorphology itself – we just need to click on the Documentation button in DeepMorphology and it will appear in the PixInsight’s Documentation browser . We have also made the same documentation available online, here:
Credits
DeepMorphology was developed using the PixInsight Class Library. Any product derived from the PCL, including DeepMorphology, must reproduce the following acknowledgment:
This product is based on software from the PixInsight project, developed by Pleiades Astrophoto and its contributors (http://pixinsight.com/).
The above statement refers to our use of the PCL to develop DeepMorphology only. DeepMorphology is developed independently, without any relation to or contributions from Pleiades Astrophoto.
